Victron Energy Marine Systems

Our Expertise

YachtPROtect is registered as a Victron energy professional Installer who is passionate about what equipment we use and our Installations.

We are constantly training with Victron to keep up to date with the new systems and equipment.

We also work very close with Victrons Uk main dealers who provide us with system design and technical back up plus after care.

Our Services

Whether you are looking for a simple Victron energy charging system to a complete Victron Solar system with Lithium batteries and remote monitoring, we can design a system to suit your requirements, budget and available space.

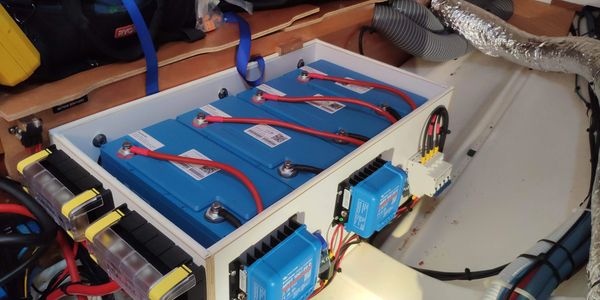

We can also build bespoke battery compartments to house everything safely.

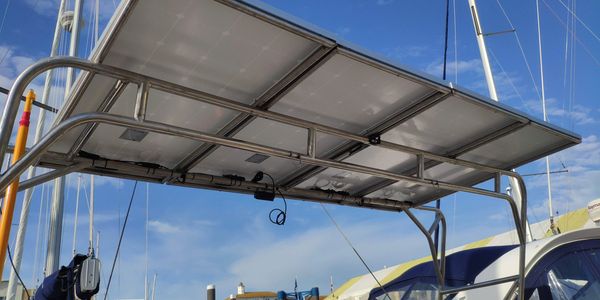

Bespoke Solar Fitting

We also work with some extremely experienced metal fabricators who we collaborate with to design and Install a Bespoke Solar Arch or System to accommodate your Victron Solar system

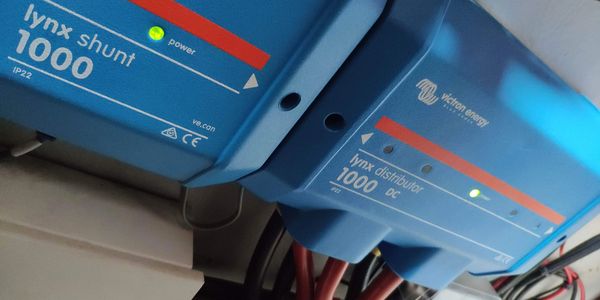

Victron Lynx System

A modular DC busbar used to connect batteries to the Lynx DC distribution system, available as M8 and M10 models.

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system, available as M8 and M10 models.

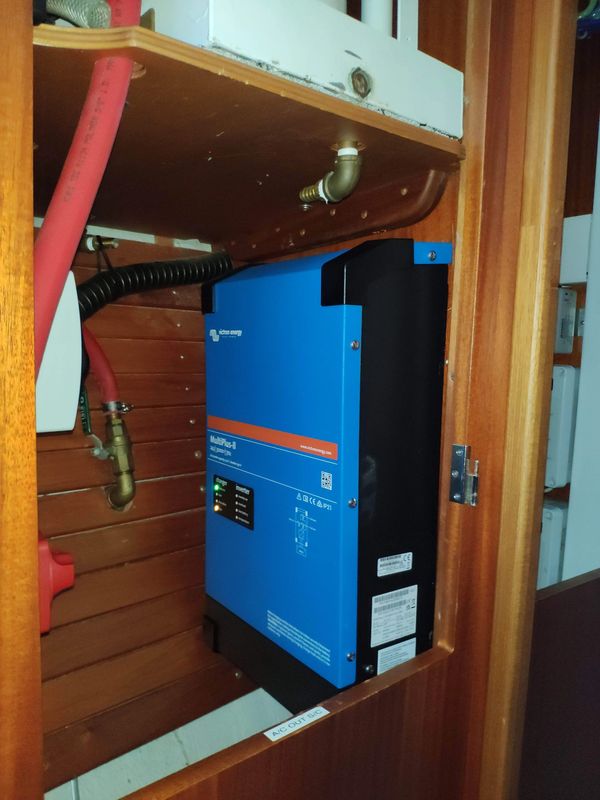

Victron Multiplus II Charger / Inverter

MULTIFUNCTIONAL INVERTER WITH AC CHARGER - MULTIPLUS II 12V 3000VA

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

POWERASSIST

The MultiPlus-II will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.

UNINTERRUPTED AC POWER (UPS FUNCTION)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

REMOTE MONITORING AND CONTROL

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more…"

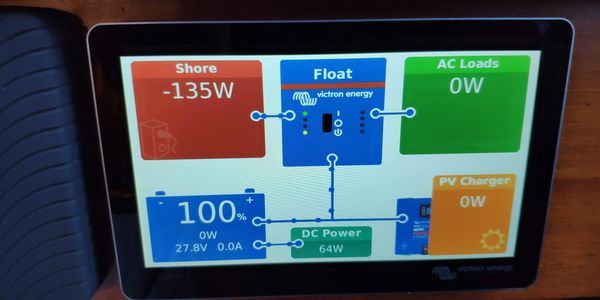

Victron GX System Touch Screen Display

The GX Touch 50 is the display accessory for our Cerbo GX. The five inch a touch screen display gives an instant overview of your system and allows to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

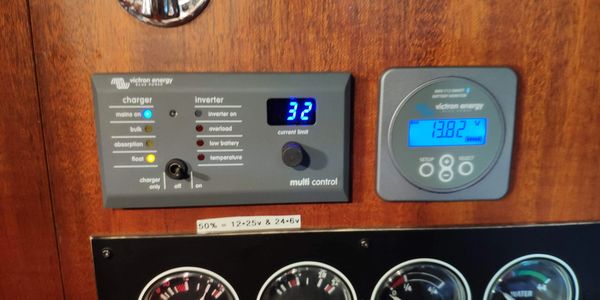

Victron Multi Remote & BMV

3/PMU panel. Victron Phoenix Multi remote panel with power sharing facility and inverter / charger controls and indicators - c/w digital current limiter indication.

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

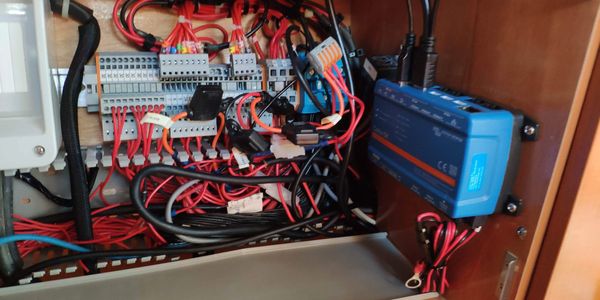

Victron Cerbo GX System

GX products are Victron's state-of-the-art monitoring solution. The family consists of the different GX products, and their accessories. The GX-device lies at the heart of the system - providing monitoring, and operating as the communication-centre of your installation. All the other system-components - such as inverter/chargers, solar chargers, and batteries - are connected to it. Monitoring can be carried out locally and remotely - via our free-to-use Victron Remote Management portal (VRM). The GX-device also provides Remote firmware updates and allows inverter/charger settings to be changed remotely.
